Benefits
- Improves earth station reliability
- High energy efficiency
- Unattended operation
- International capability
Features
- Automatic regeneration
- Direct digital control
- LED displays for operating and alarm data
- 120/230 volt 50/60 Hz operation standard
- English and SI calibration standard
- S-A and terminal communication protocols
- CE Certification
- UL 1950/IEC 950
Description

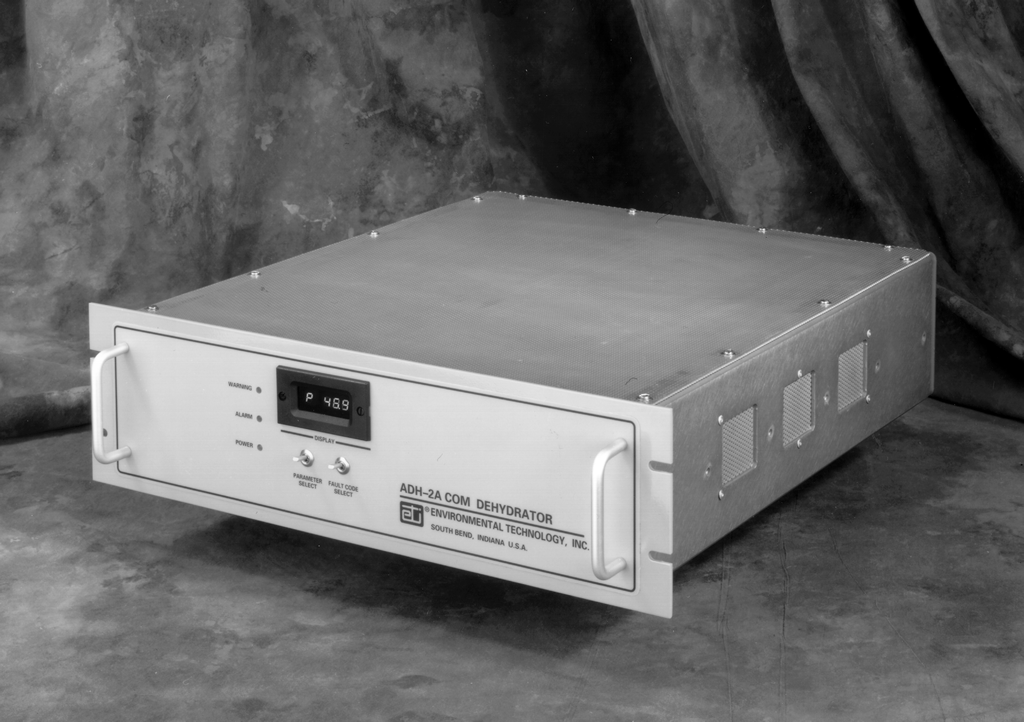

The ADH– 2A COM Automatic Dehydrator supplies low pressure -40°F (-40°C) maximum dew point air to keep waveguide and coax dry. The standard pressure is 0.5 psig (34.5 mbar) with 3 psig (207 mbar) and 6 psig (414 mbar) options. Standard features include automatic regeneration, alarm and low pressure relays and an RS– 422/RS– 485 communications interface thus making unattended operation practical.
The ADH– 2A COM uses LED displays and indicators to provide a wide viewing angle and good visibility under low-light conditions. Displayed information includes status, operating and fault diagnosis data along with air pump operating time.
The ADH– 2A COM operates with exceptionally low noise and vibration levels. The dehydrator uses aluminum oxide desiccant for high efficiency. The humidity sensor causes regeneration based upon current dew point rather than at fixed time intervals for additional energy savings and long desiccant life. Dual micro-controllers and solid state circuitry insure reliability. Two ADH-2A COM dehydrators can be connected in master/slave configuration to provide redundancy and increase reliability.
The ADH– 2A COM requires only 5-1/4" of panel space. An internal evaporator eliminates the need for a water drain. The dehydrator operates from 120/230 volts 50/60 Hz or optionally, 24 VDC or 48 VDC. A user-set jumper selects the display of either SI or English units.
The ADH– 2A COM consumes a maximum of 150 watts during regeneration and approximately 60 watts otherwise. Thus, this products creates an exceptionally low heat load for an automatic dehydrator.
Specifications
| Discharge pressure | 0.5 psig (34.5 mbar) |
| Flow rate | 14.2 ft3/hr (402.6 l/hr) |
| Maximum dew point | -40°F (-40°C) |
| Regeneration | Automatic, demand |
| Supply voltage | 120/230 volts AC 50/60 Hz |
| Nominal power | 60 watts |
| Maximum power | 146 watts |
| Alarm relay capacity | 240 volts AC at 1 Amp SPDT |
| Communications interface | RS-422, 1200 or 9600 baud, 7 bit, even parity, 1 stop bit, DB-9 connector |
| Pressure connection | 1/4" barbed hose fitting |
| Approximate weight | 31.3 pounds (14.2 kg) |
| Operating Temperature | 32° F to 130° F (0° C to 55° C),
rack& wall -40° F to 130° F (-40° C to 55° C) outdoor |
| Storage Temperature | -40° F to 150° F (-40° C to 60° C) |

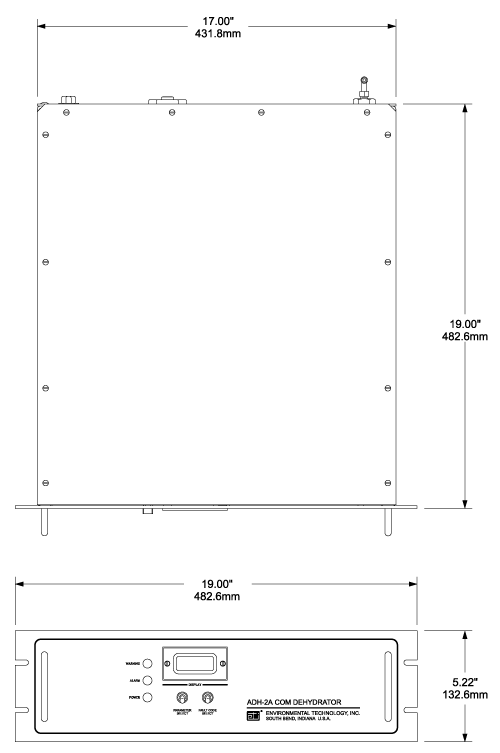

| Dimensions | 19" x 19" x 5.25" (48.3cm x 48.3cm
x 13.3cm), rack 19" x 19" x 5.25" (48.3 cm x 53.3 cm x 13.3 cm), wall 24" x 24" x 8" (60.0 cm x 60.cm x 20.3 cm) outdoor |
